Circulation Fans
Call 813-843-4780Whatever your needs – commercial, industrial, or agricultural – E-Cool of Florida has the right size and type of circulation fan to fit your application
12″ – 30″ Traditional OSHA Guarded Fans
18″ OSHA Guarded Fans
12″ – 24″ High-velocity Deep Basket Fans
20″ & 24″ Livestock Animal Show Fans
36″ Agriculture Fans
Wide-spaced Poultry Fans
Here are just a few of our more popular circulation fan styles and models
12HAFD OSHA Circulating Fan
• Traditional round OSHA spaced guards
• Guards are powder coated
• Industrial aluminum blades
• Motor type TEAD, IP55 rating
• Bracket included
For more information or to order:
Call E-Cool of Florida at 813-843-4780.
Specifications:
12-inch blade
1/10 hp
115 volt
1.0 amps
1,085 CFM
1,700 RPM
Variable speed
White
18 lbs.
12VT4GV Hot Dipped Galvanized Guarded Fan
• High-efficiency and quiet operation
• Engineered OSHA guard design for maximum airflow
• Guards have hot dipped galvanized coating for coastal area
• Aluminum blades
• Motor type: TEAD, IP55 rating
• Bracket included
For more information or to order:
Call E-Cool of Florida at 813-843-4780.
Specifications:
12-inch blade
1/10 hp
115 volt
1.0 amps
1,635 CFM
1,700 RPM
Variable speed
White
20 lbs.
18B4B3 High-performance Fan
• OSHA spaced guards
• Powder-coated black
• Aluminum blades
• Motor type: TEAD IP55 rating
• Bracket included
• Pre-wired with 7 ft. cord
For more information or to order:
Call E-Cool of Florida at 813-843-4780.
Specifications:
18-inch blade
1/4 hp
115 volt
1.8 amps
1,425 CFM
1,650 RPM
3-Speed
34 lbs.

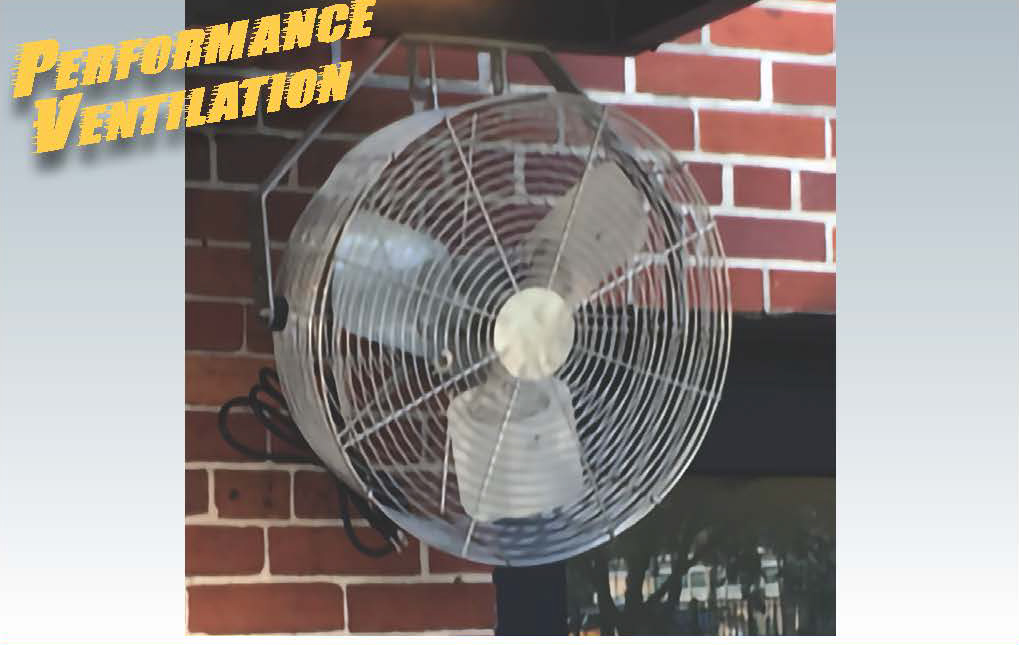

18B4SSV OSHA Circulation Fan
• OSHA spaced guards
• 304 stainless components
• Low energy consumption per CFM
• AL-EX series motor for use in normal or extreme conditions
• Aluminum extruded motor for superior heat dissipation
• Motor type TEAD, IP56 rating
• Bracket included
For more information or to order:
Call E-Cool of Florida at 813-843-4780.
Specifications:
18-inch blade
1/4 hp
115 volt
2.6 amps
2,425 CFM
1,700 RPM
Variable speed
304 stainless
23 lbs.
